SURF RAKE
The Barber SURF RAKE is the most popular tractor-towed beach cleaner in the world. This is because it is the fastest and most efficient beach cleaner on the market. It is currently available in two models that are optimised for different-sized beaches.
What does this product do?
Barber beach cleaning machines are effective in removing beach pollution such as seaweed, dead fish, glass, syringes, plastic, cans, cigarettes, shells, stone, wood and virtually any unwanted debris. Barber beach cleaning machines are even used to effectively remove oil and tar balls from beach sand after oil spill disasters.
Why this product?
The Barber SURF RAKE is the most popular tractor-towed beach cleaner in the world. This is because it is the fastest and most efficient beach cleaner on the market. It is currently available in three models that are optimized for different-sized beaches.
At 1950kg, the 600HD is the largest beach rake offered by H. Barber & Sons and the most widely-used beach cleaner by municipalities to clean expansive beaches. Cleaning sand up to 36,420m2 an hour with a 2.1m cleaning path, the 600HD has the greatest sand cleaning capacity of any beach cleaner in its class. The 2.3m3 hopper can hydraulically lift up to 2040 kg of material to a clearance height of 2.7m and dump its contents.
The 400HD has proven to be an excellent choice for resorts, hotels and lakeshore communities. At 1,220kg, it is the medium-sized beach rake in the SURF RAKE lineup. It is equipped with a 0.75 m3 hopper that will lift 1,590kg of debris from the sand to a dumping height of nine 2.74m. This mid-size beach rake uses the same heavy-duty conveyor and dump components as the 600HD. The 400HD can clean beaches at up to 28,300 m2 per hour.
The SAND MAN 850 is a versatile sand sifter and soil screener that has a wide variety of applications. Its inherent maneuverability, effectiveness, and ease of operation make it a valuable tool for golf course owners, small beach owners, and anyone who maintains smaller sandy areas. By screening stones, litter, shells, glass, and other finer objects, the SAND MAN ensures your property will be debris-free.
| 600HD | 400HD | Sand Man 850 | |
DIMENSIONS: | H: 2.3 m x L: 4.0 m W: 2.3 m | H: 2.2 m x L: 3.6 m x W: 2.3 m | H: 107 cm, L: 48 mm, 95 mm, 143 mm, W: 86 cm |
| WEIGHT: | 1800 kg | Approx. 1225 kg | 280 kg |
| CLEANING WIDTH: | 2.14 m | 1.8 m | 85 cm |
| CLEANING DEPTH: | Adjustable to 15cm | Adjustable to 15 cm | 0-10 cm |
| OPERATING SPEED: | 1 to 25 km/hr | 1 to 25 km/hr | 1.8 - 5.5 km/hr |
| DEBRIS REMOVED: | Broken glass, plastic, syringes, cigarette butts, pop-tops, straws, cans, tar balls, stones 3/8" to 6" in diameter, sea grass, seaweed, fish, small pieces of wood. | Broken glass, plastic, syringes, cigarette butts, pop-tops, straws, cans, tar balls, stones .95 cm to 15.24 cm in diameter, sea grass, seaweed, fish, small pieces of wood. | Broken glass, plastic, cigarette butts, pop-tops, straws, shells, stones, small pieces of wood. |
| PERFORMANCE: | Cleans up to 32,000 m²/h | Cleans up to 20,000 m²/h | Cleans up 1,400-3,200 m²/h |
| DUMP HEIGHT: | 2.75 m | 2.75 m | N/A |
600HD

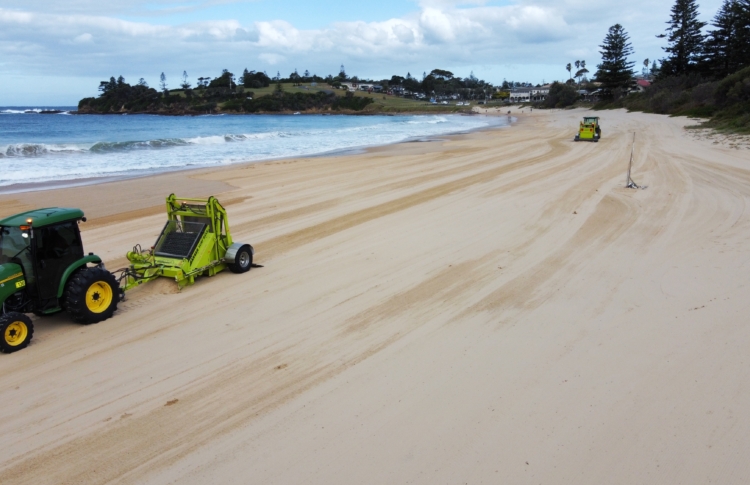

See below how the Model 600HD is able to remove rubbish effectively and utilises the finisher assembly to apply a final beach groom.
400HD
The Barber SURF RAKE 400HD is able to remove seagrass at ease on the tideline.
The Barber Sand Man 850
As a narrow, lightweight and maneuverable sand sifter, the SAND MAN can be an essential tool for any golf course maintenance team. Using a vibrating screen, it removes small stones, grass, leaves, and other debris as small as 3mm. As a self-powered unit, it cleans the sand much quicker and more effectively than standard bunker rakes, while requiring fewer people to get the job done. The SAND MAN sports high floatation tires and can drive across fairways without leaving ruts. It agilely powers in and out of bunkers without damaging their edges. Learn more about the SAND MAN's bunker-cleaning abilities by viewing the demonstration videos below.
YES. This is one of the most common tasks for the SURF RAKE. Hundreds of tines mounted in offset rows rake through the sand each second capturing the small debris such as cigarette butts and broken glass.
YES. The Barber SURF RAKE is the most effective beach cleaner in removing seaweed. Our tine raking method of cleaning is ideally suited for this type of debris.
YES. The Barber SURF RAKE has 4 offset rows of tines working in the sand at all times. The tines clean to a consistent depth over the full width of the conveyor. This action actually pulls debris to the surface of the sand for removal by the tines.
NO. The machine rides over hidden or submerged objects. The SURF RAKE does not employ a buried cutting edge like those found on some other machines.
NO. As the machine rides over hidden or submerged objects, the operator will not experience any quick stop or lunge of the machine.
NO. The SAND MAN is equipped with rubber tires, which allow it to drive over grass without gouging and over sidewalks without leaving scratches. The optional front transport wheel also assists in moving the SAND MAN from site to site quietly and without damage to the surface it is driving on.
YES. The SAND MAN comes with the three most often requested mesh sizes. We also offer 8 other sizes for custom beach conditions.
